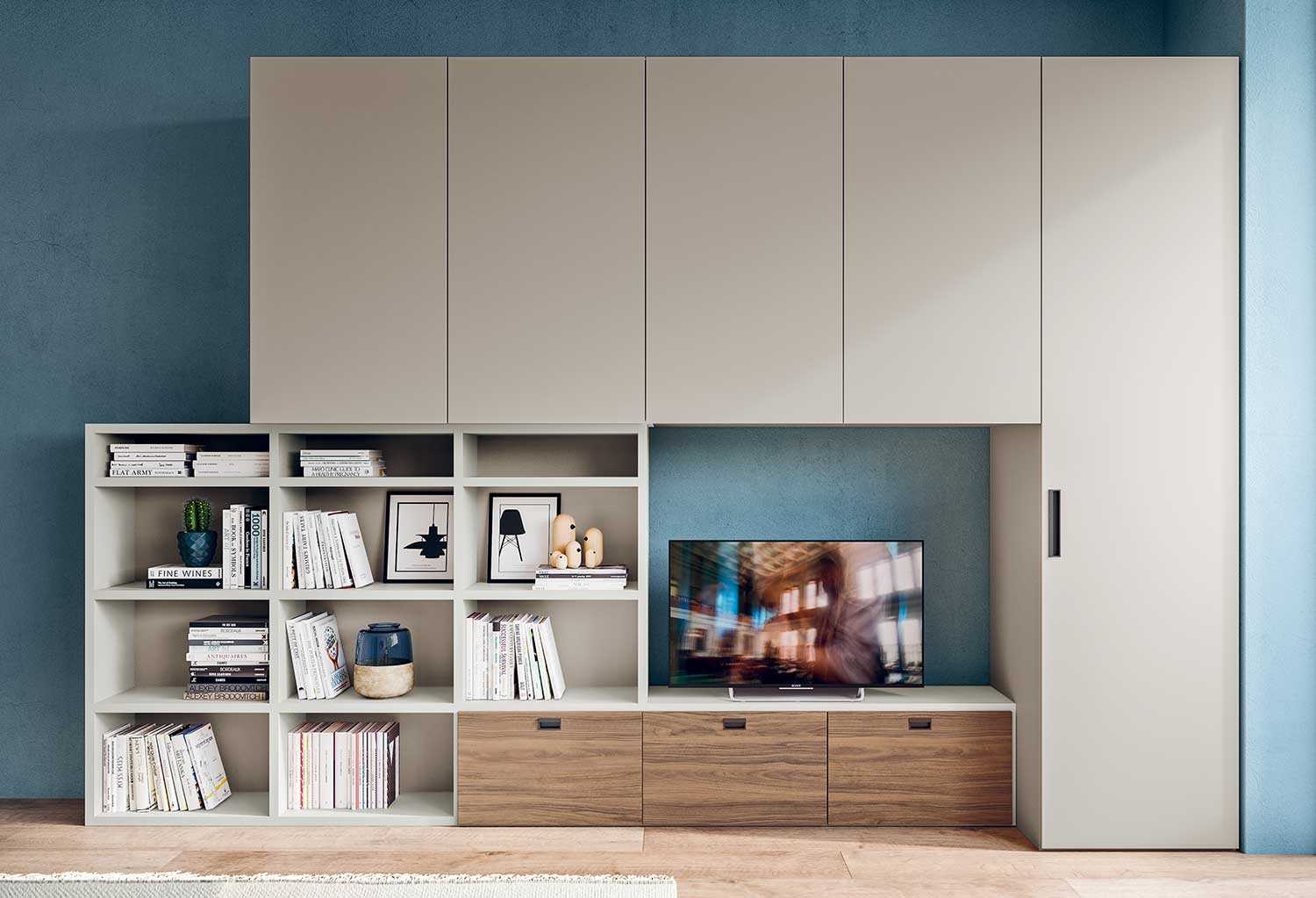

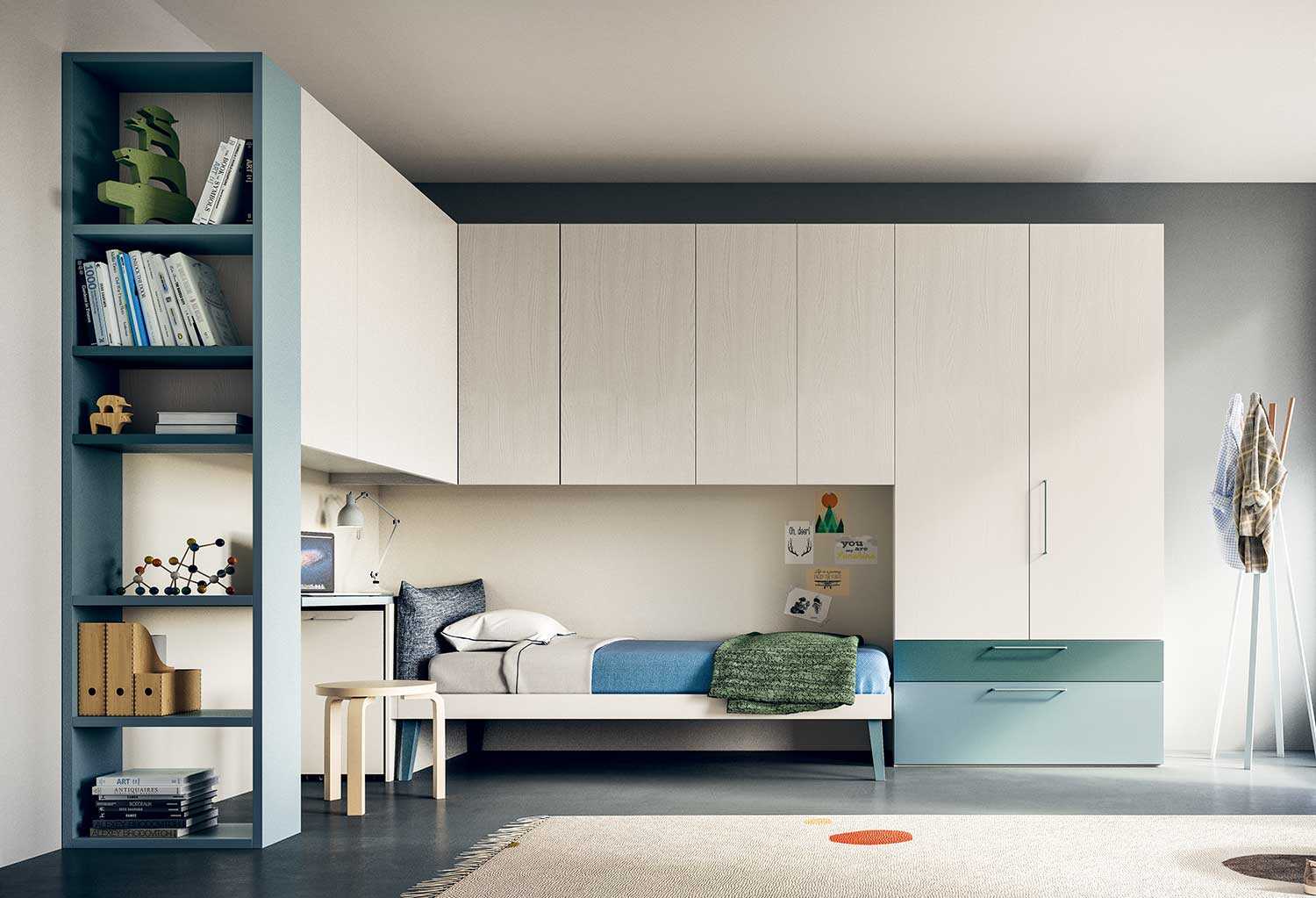

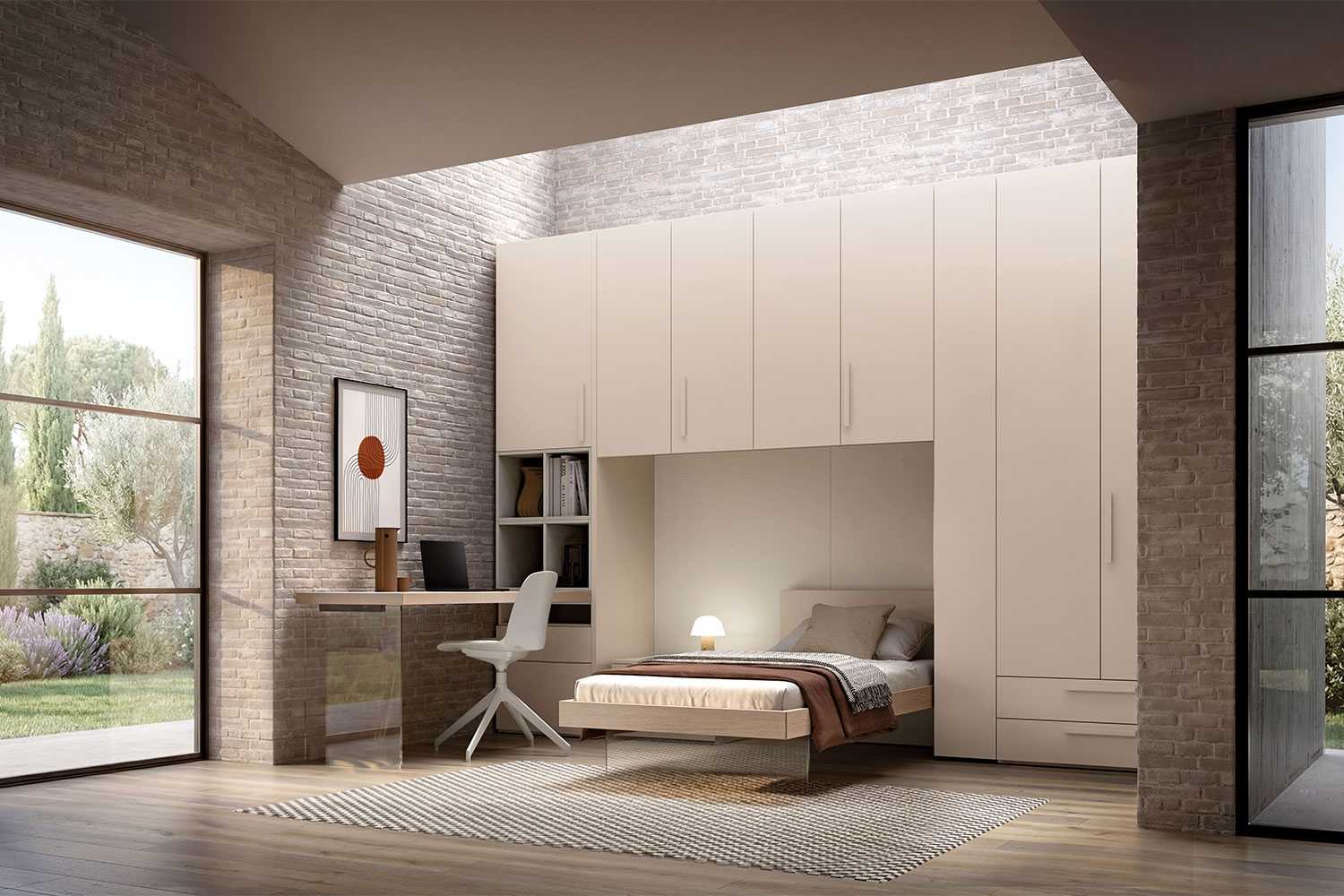

Bridging Units
Bridging units are composed of free standing Blok elements. Units are supported by a pair of brackets, fixed on a wall-mounted rail. Wall units cannot be attached to plasterboard walls or walls not suitable for supporting weights.
Please note: bridging units always need to be combined with lower elements like back panels or open columns.
Back panels
- width: 45 / 60 / 90 / 120 cm
- height: 130,8 / 149,2 / 158,4 / 176,8 cm
Technical void of 0,5 cm, with adjustable feet. In melamine, lacquered or Linea finish.
Under-bridge bookshelf: w. 45 / 60 h.130,8 / 149,2 d.32,8 / 45,6 cm
Equipment
Doors: standard dust stop and soft-closing mechanism (except for walk-in closet and end modules). Hinges in burnished finish with horizontal, vertical and depth adjustment. Tested for 80,000 openings.
Drawers: fixed on soft-closing concealed rails, partial extraction, height adjustment. Bottom in 1,8 cm thick melamine panel, sides and back in 1,2 cm thick panel covered in Titanium embossed finish PVC. Max load 30 kg.
Closet rods: burnished metal, square section, fixed on top panels or shelves.
End Modules
You can choose to supply your wardrobe with side bookshelves, closed external storage space or end compartments with shelving, mirrors, rounded shelves, hooks and clothes rails.
Accessories
Extra shelves: linear (also available for bridging units), corner or vertical partitions, 3 cm thick
T-shirt organizer (only for wardrobes d.60,6 cm): d.48 h.36,6 cm
Clothes hanging
- extra rods: linear or corner
- hooks: burnished or white, d.2 h.5 cm
- pull-out rods (only for wardrobes d.47,8 cm): burnished finish, free installation on side panels, d.30 cm
- pull-down rod: burnished finish, with soft-opening mechanism, also available for bridging units
- Ambrogio rack: w.45 d.58,4, on a 5 cm thick platform, with burnished rod
Pull-out trouser rack (only for wardrobes d.60,6 cm): h.13 cm, burnished finish
Shoe rack: fixed, chromed finish, d.23 h.13 cm / pull-out, burnished finish, h.13 cm
Pull-out tie rack: aluminium finish, free installation on side panels
Pull-out basket: burnished finish, h.13 cm
Internal chest of drawers: 2 or 3 drawers, with top 3 cm thick, soft-closing rails and handles with fixing centres 96 cm in aluminium finish
Slanted shoe shelves: with wooden shelf and burnished aluminium anti-slip edge, h.18,4 cm
Internal mirror
- fixed: w.32 h.116 cm, installation on doors using mirror brackets (not suitable for end or corner modules)
- pivoting: w.35 d.4 h.100, bronzed, to be placed in a shelfless compartment
Spotlights
- TECH: white finish, touch or motion detector sensor, rechargeable lithium battery power supply, micro USB charging cable included (inductive charging also available), 3000K light
- round Touch: Ø 8 x 2 cm, black, on/off/adjustment touch dimmer switch, 4,5 W, 3000K light
LED Lightning
- external: burnished finish, with connection cable to power supply, 3000K light
- recessed: with motion detector fixed under the top panel (for vertical LED, please consider one sensor for each compartment), 3000K light.
Flexible lamp: white finish, fixed to panels, touch sensor, 12 V, 1,2 W, 200 cm cable
Sterilizer: patented photocatalytic and antibacterial lamp. Titanium lacquered aluminium frame with ventilation holes and LED lighting. It features a fan system that uses the photocatalytic process in order to detect, oxidize and remove solid particulates. Equipped with special washable filters that neutralize bacterial activity.
Upper access hatch: brown aluminium finish, w.34,2 d.19,2 h.1,2 cm.
