Structure
Side panel: with frame partitions, full-height, 3 or 5 cm thick.
Top panel: 5 cm thick.
Bed base and Mattresses
Bed base: safety system that prevents the murphy bed from accidentally opening, Dark Grey finish. Max. bed load: 150 kg.
Mattress: 90x190 h.18/20 cm (max. thickness) / Max. weight: 17 kg. Models selection:
- Premium: h.20 pocket sprung mattress with 11x30 cm springs (single bed) Ø 0,2 cm, Box system with 700 individual pocket springs (double bed) and 7-zoned support system. Internal felt 700 g/sq m, 2 cm D 25 polyurethane foam per side. Winter side with 1 cm memory foam WE 45 density, summer side with 1 cm Watercel 30 E density. Edge supports 25 E density. Amicor removable hypoallergenic cover. This mattress is not suitable for vertical murphy beds with upholstered headboard.
- Elite: pocket sprung mattress with 11x30 cm springs (single bed) Ø 0,2 cm, Box system with 700 individual pocket springs (double bed) and 7-zoned support system. Internal felt 700 g/sq m. Winter side with 1 cm Watercel 30 E density. Edge supports 25 E density. Ecotton hypoallergenic and dust mite-proof padding, Amicor removable hypoallergenic cover, Cotton Plus non-removable cover with aerators.
Equipment

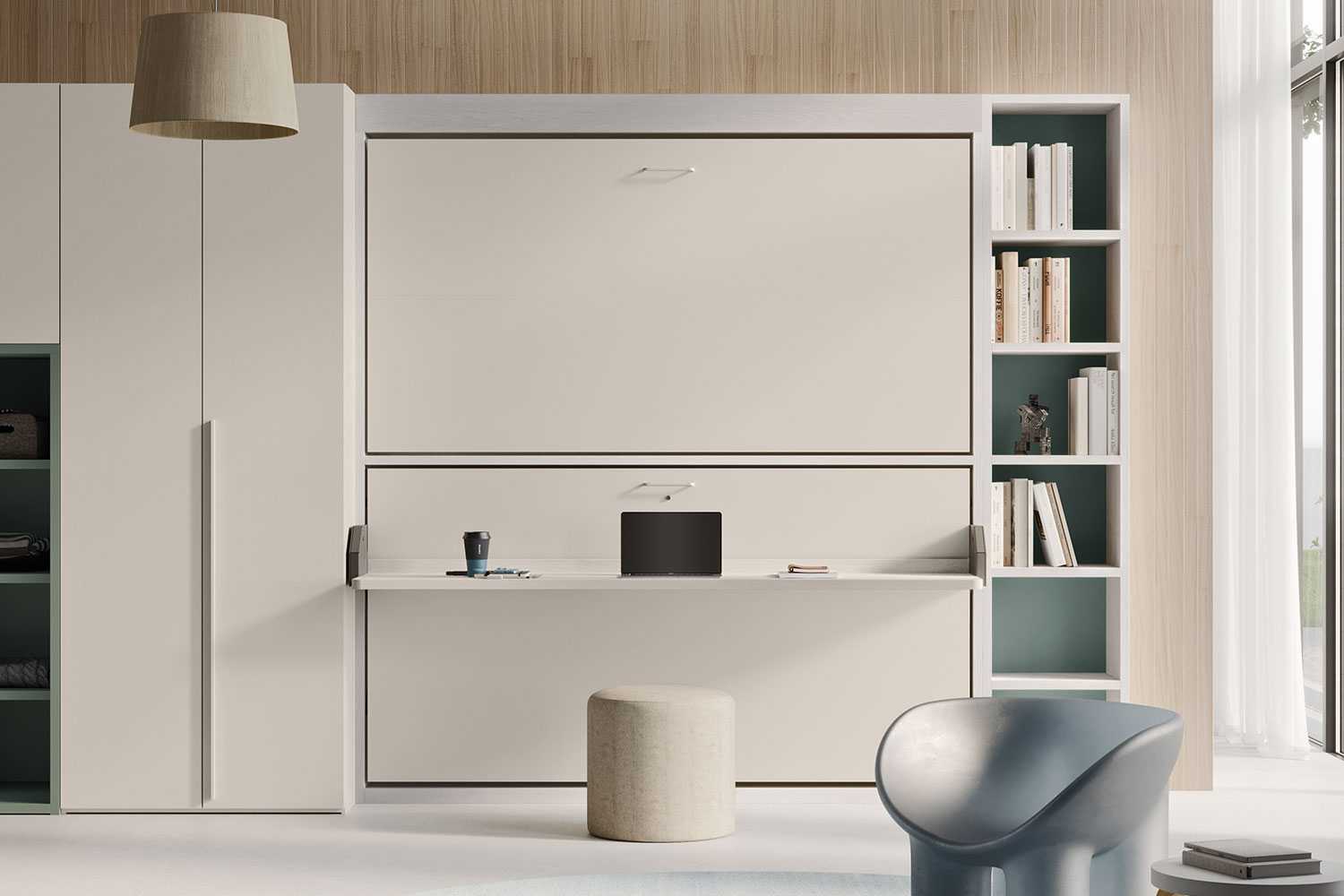

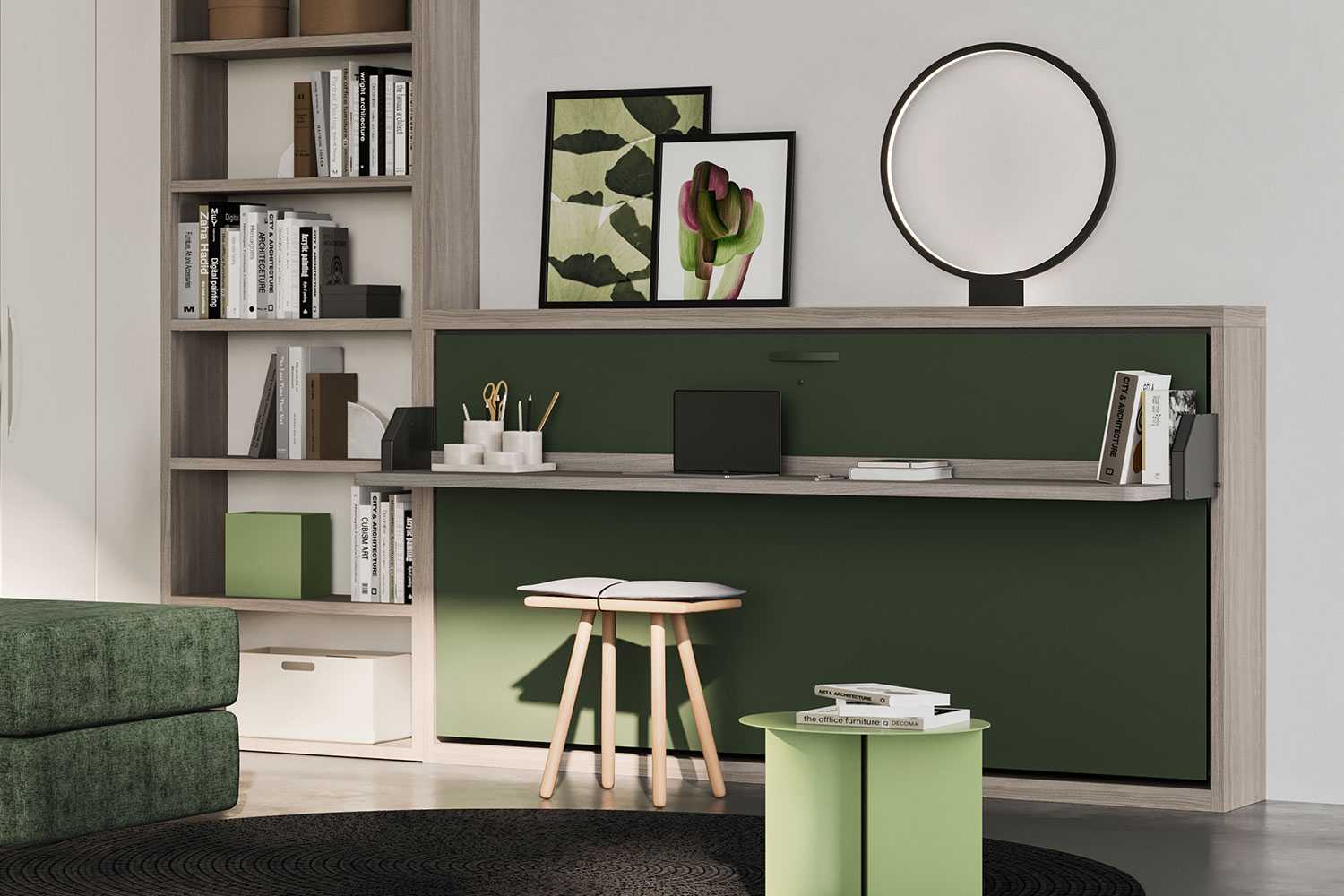

Desk: w.190 d.60 cm, max. load 15 kg. While opening, the desk automatically slides under the bed and positions itself parallel to the floor, thus keeping any accessories on the top.
Optionals
LED lighting: recessed, w.28 cm, supplied with switch and 5W / 12V power supply, placed on the right side panel.
Bridging units shelves: w.98 d.32,8 / 45,6 / 58,4 cm, 3 cm thick
Pair of pistons lift mechanism covers.
Adjustable headboard for lower bed with fabric cover.
Footstool bed: w.90 d.95 h.45 cm, cat. A or B fabrics. Bed base: 190x90 h.22,5 cm.
Front panel handles
C25: 18 cm, fixing centres 16 cm. Burnished metal or lacquered in the colours of the Swatches Library (metallic hues included), matching colours for structure melamine.
C28: 22 cm, fixing centres 19,2 cm. Aluminium finish metal.
C29: 22 x 2,5 cm, fixing centres 19,2 cm. Burnished metal or lacquered in the colours of the Swatches Library (metallic hues included), matching colours for structure melamine.
Assembly
The murphy bed is disassembled but provided with assembly instructions. Wall fixation with supplied brackets is required. Anchoring on plasterboard walls doesn't guarantee tightness.
